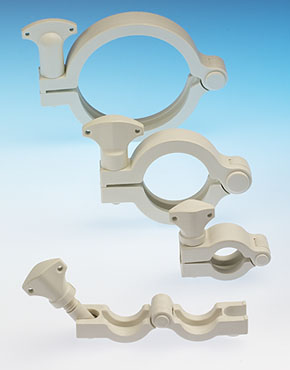

BioClampspharmOvate Disposable BioClamps

pharmOvate offers a vast selection of disposable BioClamps. Each disposable BioClamp features a patented plastic tri-clamp with quick release, specifically designed to meet the needs of busy pharmaceutical and bioprocessing laboratories.

Additional Features Include:

  • Molded from glass reinforced nylon USP Class IV
  • BioClamps reduce the distortion on polymeric components when subjected to heat
  • High compatibility with current Pharmaceutical and Biotech manufacturing offering greater flexibility in operation and single use disposal
  • Can be autoclaved repeatedly at 273°F (134°C) for 5 minutes
  • When subjected to 60 kGy (6Mrad), pharmOvate's BioClamps showed no detectable weakening
Size Material Max Operating Pressure Max Cumulative Gamma Dose Part Number
1/2" - 3/4"
Nylon 66
150 psiG
6 Mrad
NG075WH
1" - 1-1/2"
Nylon 66
150 psiG
6 Mrad
NG150WH
2"
Nylon 66
150 psiG
6 Mrad
NG200WH
2-1/2"
Nylon 66
150 psiG
6 Mrad
NG250WH
3"
Nylon 66
150 psiG
6 Mrad
NG300WH
4"
Nylon 66
150 psiG
6 Mrad
NG400WH
6"
Nylon 66
90 psiG
6 Mrad
NG600WH
8"
Nylon 66
90 psiG
6 Mrad
NG800WH



BioClamp Patents: UK Pat No: GB2361753; UK Pat No: GB2362428; USA Pat No: US 6,708,377 B2; USA Pat No: 10/026,215; India Pat No: 199286; Australian Pat No: 774546.
